Proto 2 neck heel carving
- February 18th, 2010
- Posted in News
- Write comment
I didn’t get as much done on the fretboards as i would have liked last week, but i did get them prepped for slotting. We just couldn’t find the proper wrenches to change the blade on the table saw.
So instead, i spent time carving and shaping the neck heel on Proto 2.

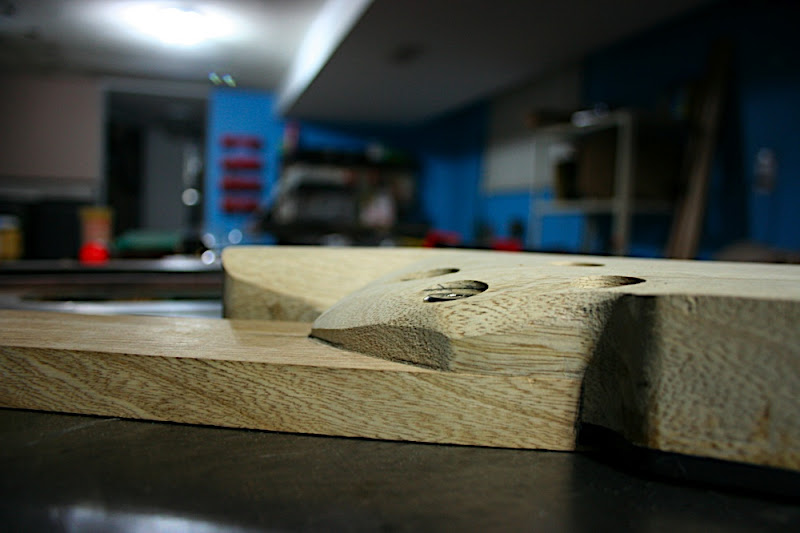

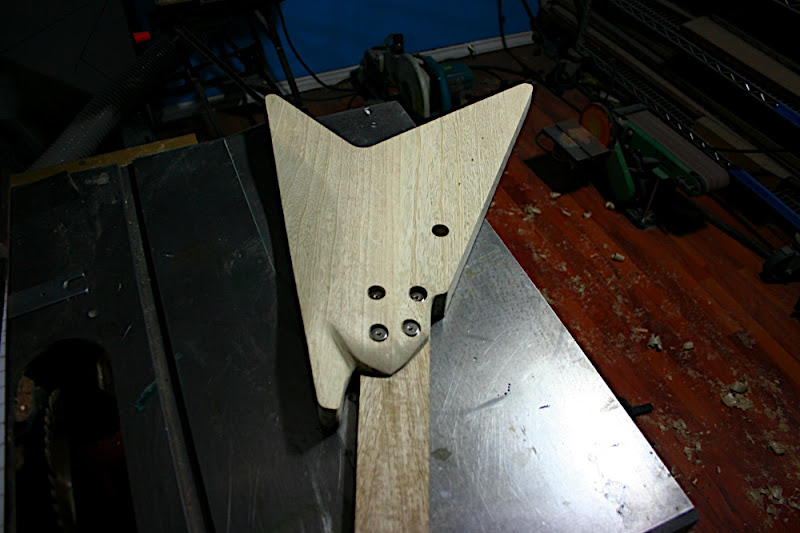

The heel has been shaved down and contoured. The bolts sit on 1/2″ of wood on the heel, so the contours are just a bit thicker than that.
The heel of the neck is carved asymmetrically with one purpose in mind: Comfort and playability.
Some details in the bevels and contours will be refined as the body is sanded and prepped for paint.

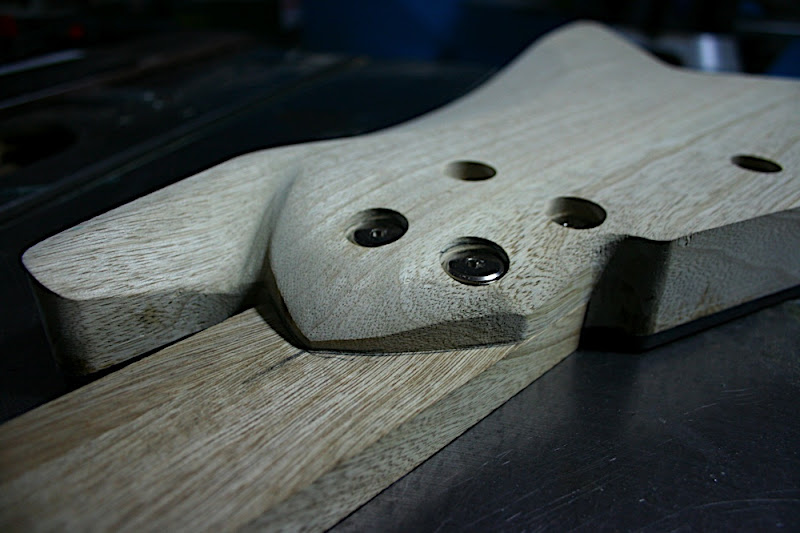

Smooth.

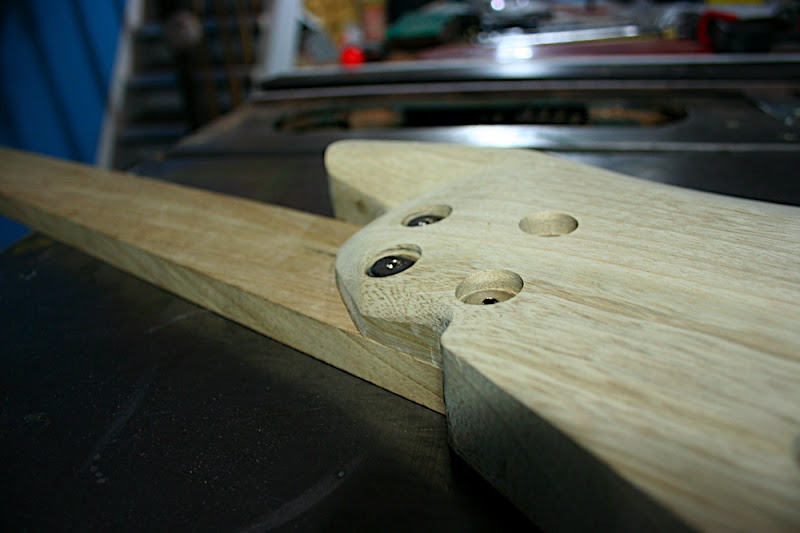

The contours of the heel will be blended into the neck carve.

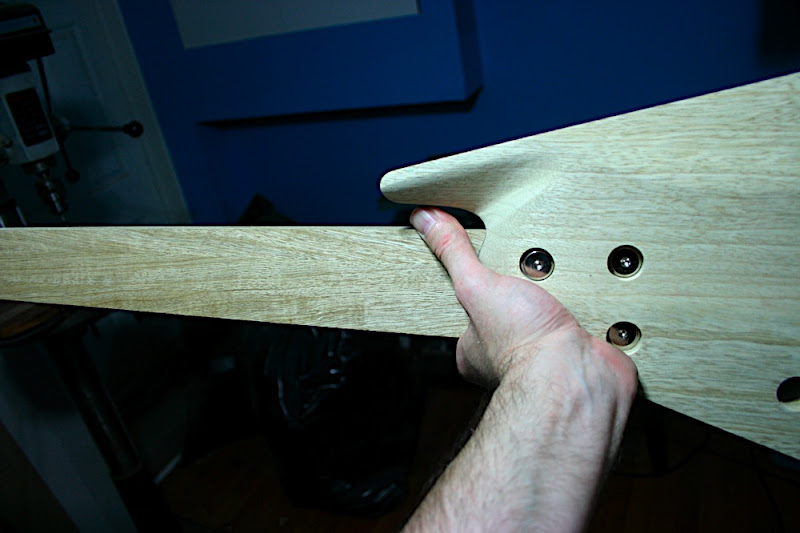

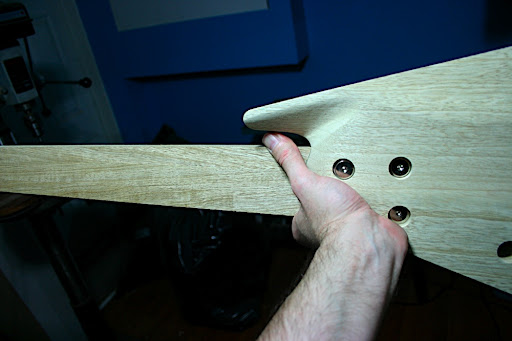

… and this is how it fits in the hand.
A couple more pics can be found on the Proto 2 build page.
I want! (assuming you eventually make a 6 string version that is).
Hey, Mike
Don’t worry… 6-strings are definitely in the plan. Right now i’ve only done templates for 7-string 27″ scale necks. My plan is to offer 25.5″ scale and 27″ scale in 6- and 7-strings. I’ve also had a few inquiries about 8-strings.
